    Large Size 16040 , 16040M , 16038MA Bearing Size Chart Thin Walled

    Ask Lasest Price
    Brand Name : FSKG / KBE / OEM / Any Brand
    Model Number : 16040 C3
    Certification : ISO9001-2000 / CE / ROHS / UL / SGS
    Price : Talk in the letter
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100000pcs/month
    Delivery Time : 5-7Days After Details Confirmed
    • Product Details
    • Company Profile

    Large Size 16040 , 16040M , 16038MA Bearing Size Chart Thin Walled

    Thin-walled 16040 C3 Deep Groove Ball Bearing Rolling Mill Bearing for Construction Machinery


    Bearing Specification :

    FSK BEARING Model Number16040 C3
    Part NameDeep Groove Ball Bearing
    FeatureLarge Size Thin Walled Bearing
    Dimensions(mm)(d*D*b)200 × 310 × 34 mm
    Weight / Mass ( KG )10.3 kg
    CageSteel Cage / Brass Cage
    MaterialGcr15 Chrome Steel
    Precision RatingABEC-3 / ABEC-5
    BrandFSKG / KBE / OEM / Any Brand
    Original Country Show

    CHINA ( FSKG)

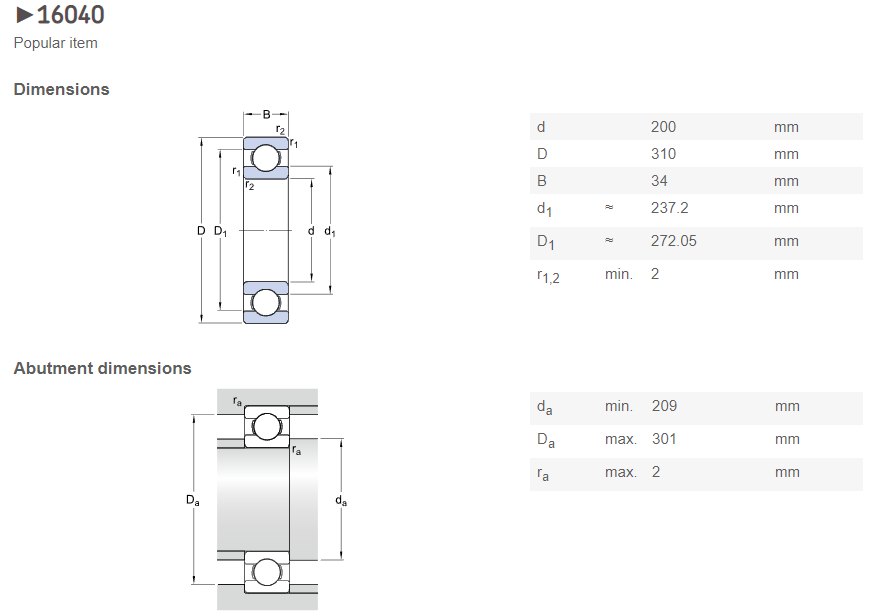

    Detail Bearing Photos :


    The Other Bearings We Do

    Part No.BoreOutside DiameterWidth
    MM.InchMM.InchMM.Inch
    16001120.4724281.102470.2756
    16002150.5906321.259880.315
    16003170.6693351.37880.315
    16004200.7874421.653580.315
    16005250.9843471.850480.315
    16006301.1811552.165490.3543
    16007351.378622.440990.3543
    16008401.5748682.677290.3543
    16009451.7717752.9528100.3937
    16010501.9685803.1496100.3937
    16011552.1654903.5433110.4331
    16012602.3622953.7402110.4331
    16013652.55911003.937110.4331
    16014702.75591104.3307130.5118
    16015752.95281154.5276130.5118
    16016803.14961254.9213140.5512
    160341706.692926010.2362281.1024
    160361807.086628011.0236311.2205
    160381907.480329011.4173311.2205
    160402007.87431012.2047341.3386
    160442208.661434013.3858371.4567
    16017853.34651305.1181140.5512
    16018903.54331405.5118160.6299
    16019953.74021455.7087160.6299
    160201003.9371505.9055160.6299
    160211054.13391606.2992180.7087
    160221104.33071706.6929190.748
    160241204.72441807.0866190.748
    160261305.11812007.874220.8661
    160281405.51182108.2677220.8661
    160301505.90552258.8583240.9449
    160321606.29922409.4488250.9843

    Ball BearingDeep Groove Ball Bearing60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **,
    160 **(70001 )
    Thrust Ball Bearing511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series
    Angular Contact Ball bearingSN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series
    Roller BearingSpherical Roller bearing239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on
    Taper Roller Bearing329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc.
    Thrust Roller Bearing292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series.
    Cylindrical Roller BearingNU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used in Steel Industry.




    FSK Bearing Company Advantages:
    (1) We have first-class testing equipment to detect bearing various data parameters and control the quality of the bearing.
    Whenever bearings must first detected whether the quality is qualified and the unqualified bearing will be eliminated directly.
    So we can get the trust of a large number of customers, and supply them for several years.
    (2) We have our own R & D capabilities, to help customers solve the problem of non-standard bearings.
    We can also according to customer requirements change their own mark.
    (3) Price, our manufacture ensure that our prices across China are quite competitive.
    It is better for you to compare prices and quality among suppliers.
    But everyone knows you can not buy the highest quality products with the lowest price,
    but our product is the best quality if you use equal price.

    FSK Cooperation Details
    Delivery:
    For Small weight or ungent ,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking number
    For max production , we will ship by sea/air.
    Payment Item:
    TT, 30% deposit , 70% before shippment.
    L/C At Sight
    Paypal Or Western Union In advance
    Service:
    Trade Assurance
    Payment Protection
    Timely Delivery Guaranteed
    Product Qualtity Protection

    Thin-walled 16040 C3 Deep Groove Ball Bearing Rolling Mill Bearing for Construction Machinery,Get Cheap Price from China Bearing Factory Now !
